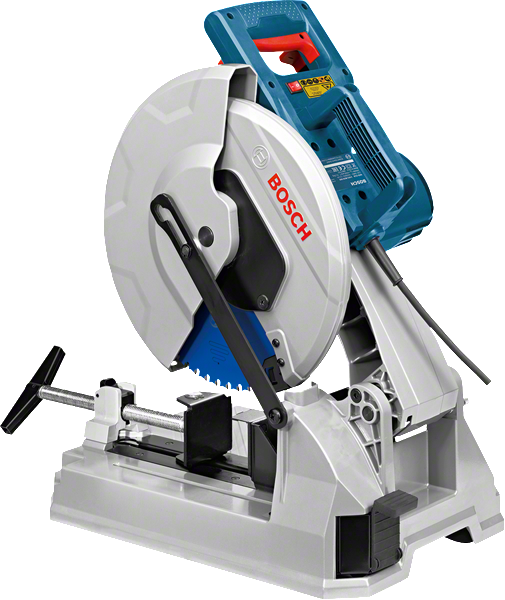

GCD 12 JL Professional
Metal Cut-off Saw
Precise results, less rework and up to 100% spark-free
- Precise results and little rework thanks to minimum discolouration and low levels of burr formation with “Expert for Steel” saw blades
- Integrated laser allows precise cutting guidance
- Up to 100% spark-free for a safe working environment
Functions & key features
Your Selection
- with 1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60 (2 608 643 060)
with 1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60 (2 608 643 060)
0 601 B28 000
Select a variant
Your Selection
with 1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60 (2 608 643 060)
Order number: 0 601 B28 000
Find a local dealerIncluded in all variants
-
1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60Order number: 2 608 643 060
Your Selection
with 1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60 (2 608 643 060), Accessory
Order number: 0 601 B28 070
Find a local dealerIncluded in all variants
-
1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60Order number: 2 608 643 060
Additional in this variant
-
Voltage 240 V
Technical data
Additional data
Rated input power
2,000 W
No-load speed
1,500 rpm
Voltage
240 V
Cutting capacity at rectangle 0º
158 x 80 mm
Cutting capacity at square 0º
100 x 100 mm
Cutting capacity at L-profile 0º
110 x 110 mm
Cutting capacity at rectangle 45º mitre
85 x 85 mm
Cutting capacity at square 45º mitre
85 x 85 mm
Cutting capacity at L-profile 45º mitre
85 x 85 mm
Tool dimensions (width x length x height)
517 x 327 x 383 mm
Weight
20 kg
